Behringer 2500 Module | ARP 2500 クローンユーロラックモジュールシンセサイザー

最終更新日： 2021年03月29日 新製品ニュース タグ: , , ,

記事中に掲載されている価格・税表記および仕様等は記事更新時点のものとなります。

© Shimamura Music. All Rights Reserved. 掲載されているコンテンツの商用目的での使用・転載を禁じます。

こちらの商品は取扱を終了しました。

Behringer ( ベリンガー )が、ARP 2500シンセサイザーのクローンモデル「2500 Module」を発表しています。上写真では10種類のモジュールが確認できます。

ARP 2500は、スティーブン・スピルバーグ監督の映画「未知との遭遇」で宇宙人との交信に使用されたモジュラータイプのシンセサイザーとしても有名です。

Arp 2500 the synth found in the movie Close Encounters of the Third Kind circa 1976

チラッと見えるシーンがありますね

実機はマトリクススイッチを使ったパッチングが特徴ですが、Behringer 2500 Moduleの写真ではケーブルによるパッチングが可能となっているように見えます。FBのコメントによればまだすべてのモジュールは完成しておらず、近日公開と発表されています。

発表済モジュール一覧

  • DUAL ENVELOPE GENERATOR MODULE 1003
  • OSCILLATOR MODULE 1004
  • MODAMP MODULE 1005
  • FILTAMP MODULE 1006
  • DUAL ENVELOPE GENERATOR MODULE 1033
  • DUAL NOISE / RANDOM VOLTAGE GENERATOR MODULE 1016
  • MULTIMODE FILTER RESONATOR MODULE 1047
  • SAMPLE & HOLD / RANDOM VOLTAGE MODULE 1036

DUAL ENVELOPE GENERATOR MODULE 1003

伝説の「ARP 2500」シリーズの 1003 Dual Envelope Generator Module をユーロラック仕様で再現

特長

  • Classic 1003 dual analog ADSR generator module from the '70s
  • Authentic reproduction of the circuitry from the "2500" Series
  • Contains 2 identical envelope generators for creating control signals
  • 4 adjustable parameters: Attack, initial Decay, Sustain, final Decay
  • Each envelope is initiated by Gate and Trigger signals
  • Switchable between 2 operating modes for added flexibility
  • Single trigger mode uses only the gate signal to control the envelope
  • Multi trigger mode uses a positive trigger pulse to re-trigger the envelope while a Gate signal is present
  • Manual gate operation via front panel push button with LED for gate signal indication
  • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

OSCILLATOR MODULE 1004

伝説の「ARP 2500」シリーズの「Dual Core VCO Module」をユーロラック仕様で再現

特長

  • Classic 1004 dual analog VCO module from the 70s
  • Authentic reproduction of the circuitry from the 2500 Series
  • VCO features 5 waveforms: sine, triangle, square, sawtooth and pulse
  • Waveforms can be combined and inversed into the audio outputs
  • Output frequency range from 0.03 Hz to 16 kHz in 2 ranges
  • VCO range selectable between Low (LFO) or High (Audio)
  • Coarse frequency control allows adjustment over 10 octaves
  • Fine frequency control adjusts over +/- 1 octave
  • Frequency modulation with 2 inputs and controls responding to 1 V/octave
  • The width of the pulse waveform can be set manually and controlled dynamically
  • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

発売日

2021年3月24日

販売価格

（税抜）￥7,500 （税込 ￥8,250）
JANコード：4033653032483



MODAMP MODULE 1005

伝説の「ARP 2500」シリーズの 1005 Ring Modulator and VCA Module をユーロラック仕様で再現

特長

  • Classic 1005 analog ModAmp module from the '70s
  • Authentic reproduction of the circuitry from the "2500" Series
  • Consists of a discrete balanced modulator and VCA
  • Balanced modulator accepts 2 input signals (DC to 20 kHz) and produces an output that is a multiplication of the two signals
  • Creates complex waveforms with in-harmonic overtones
  • 2 precision voltage outputs control the frequency of the VCO's that are typically connected
  • Modulation is activated by illuminated push buttons (Mod and Unmod)
  • In Unmod mode the signal at input A passes to the output without any modulation and the level is set by the Unmod Gain control
  • Modulation can be switched on and off by trigger or gate signals which can be patched into the module
  • VCA accepts the output from the modulator and modifies the output signal level according to the sum of the -Gain control and external control voltages
  • 2 external VCA control signals can be attenuated by front panel controls
  • VCA mode can be selected as either exponential or linear
  • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

発売日

2021年3月24日

販売価格

（税抜）￥10,800 （税込 ￥11,880）
JANコード：4033653032490

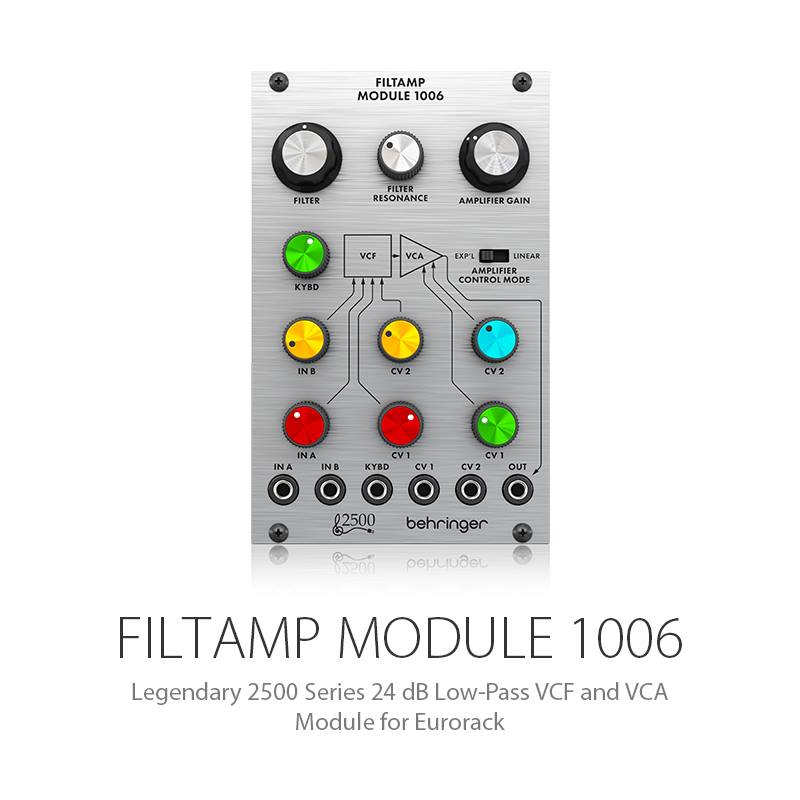

FILTAMP MODULE 1006

伝説の「ARP 2500」シリーズの 1006 24 dB Low-Pass VCF and VCA Module をユーロラック仕様で再現

特長

  • Classic 1006 analog FiltAmp module from the '70s
  • Authentic reproduction of the circuitry from the "2500" Series
  • Consists of a 24 dB transistor ladder low-pass filter followed by a discrete VCA
  • Filter cut-off frequency is controlled by external control voltages and by the Frequency control
  • 3 external VCF control voltage inputs with variable attenuation respond at 1 V/Octave
  • A resonance or "peaked" response at cut-off is adjusted with the Resonance control
  • 2 audio signals can be mixed and their relative amplitude adjusted
  • VCA accepts the output from the VCF and modifies the output signal level according to the sum of the Gain control and external control voltages
  • 2 external VCA control signals can be attenuated by front panel controls
  • VCA mode can be selected as either Exponential or Linear
  • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

発売日

2021年3月24日

販売価格

（税抜）￥10,800 （税込 ￥11,880）
JANコード：4033653032506

DUAL ENVELOPE GENERATOR MODULE 1033

伝説の「ARP 2500」シリーズの 1033 Analog Envelope Generator Module をユーロラック仕様で再現

特長

  • Classic 1033 analog dual DADSR module from the '70s
  • Authentic reproduction of the circuitry from the "2500" Series
  • The module contains two identical envelope generators for creating control signals
  • Each generator features 5 adjustable parameters: Gate Delay, Attack Time, Initial Decay Time, Sustain Level, Final Decay Time
  • Gate enables the beginning of the envelope to be delayed between 3 ms and 3 seconds
  • Each envelope is initiated by Gate and Trigger signals
  • Switchable between 2 operating modes for added flexibility
  • Single trigger mode uses only the gate signal to control the envelope
  • Multi trigger mode uses a positive trigger pulse to re-trigger the envelope while a Gate signal is present
  • Manual gate operation via front panel push button with LED for gate signal indication
  • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

発売日

2021年3月24日

販売価格

（税抜）￥8,500 （税込 ￥9,350）
JANコード：4033653032520

DUAL NOISE / RANDOM VOLTAGE GENERATOR MODULE 1016

伝説の「ARP 2500」シリーズの 1016 Dual Noise Source Module をユーロラック仕様で再現

特長

  • Classic 1016 analog dual noise and random voltage generator module from the '70s
  • Authentic reproduction of the circuitry from the "2500" Series
  • The module consists of 2 identical white/pink noise and Random Voltage generators
  • The noise outputs are generated from 2 independent transistor noise sources
  • Filtering of the white noise is used to transform into pink noise and finally a slow random voltage
  • 2 output attenuators enable the outputs to be reduced in volume
  • White or Pink Noise are selectable via slide switch and LED indication
  • Random Voltage can be switched on and off via slide switch with LED indication
  • White noise is generated from 5 Hz to 20 kHz and Pink noise is filtered to attenuate the highs and boost the low frequencies resulting in equal energy per octave
  • Slow random voltages feature peak signal power between 1 Hz and 10 Hz
  • Eurorack specs: 14 HP, XX mA +12 V, XX mA -12 V

MULTIMODE FILTER/RESONATOR MODULE 1047

伝説の「ARP 2500」シリーズの 12dB State Variable Filter Module をユーロラック仕様で再現

特長

  • Classic-sounding 1047 analog multi-mode filter and resonator module from the '70s
  • Authentic reproduction of the circuitry from the "2500" Series
  • Consists of a highly resonant 12 dB state-variable filter capable of proving a wide variety of formant shaping and tonal modulation
  • Filter simultaneously provides high-pass, band-pass, low-pass and notch outputs
  • Coarse and fine controls adjust the cut-off frequency of the filter from 16 Hz to 16 kHz with 2 external control signal inputs and attenuators
  • Resonance (Q) control adjusts the level of the resonant peak from 0 to 512 with an external control signal input and attenuator
  • Keyboard percussion feature allows the filter to generate a wide range of percussive sounds
  • A keyboard gate signal is connected to the external input with a keyboard CV connected to a frequency control input
  • Striking a key will create percussive sounds when the Keyboard Percussion mode is activated
  • When the keyboard is released the filter tone damps at a rate determined by Final Q
  • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

SAMPLE & HOLD / RANDOM VOLTAGE MODULE 1036

伝説の「ARP 2500」シリーズの SAMPLE & HOLD / RANDOM VOLTAGE MODULE 1036 をユーロラック仕様で再現

特長

  • Classic 1036 analog dual sample and hold module from the '70s
  • Authentic reproduction of the circuitry from the "2500" Series
  • Contains 2 independent sample and hold circuits, 2 random noise generators, and 2 voltage-controlled clocks
  • Produces random tone sequences, scales and arpeggios
  • Audio signal input and output for each Sample and Hold circuit with a sample command input to control the timing of samples from different sources
  • Clock Frequency control adjusts the frequency of each clock and the sampling rate
  • Manual sample control is available using momentary push buttons
  • Sampling can also be controlled externally via a trigger or gate signal using the external input connection
  • An internally generated random signal can be used as the sampled signal with an adjustable level control for each circuit
  • Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

詳細は追って追記していきます。
